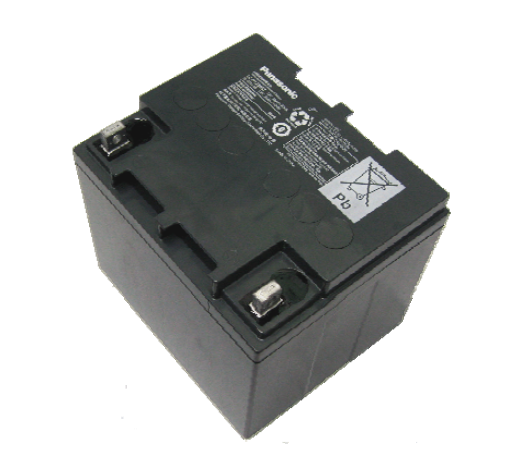

松下 6-GFM P系列 LC-P1238
2022-03-10
6-GFM P系列 LC-P1238
| 技术数据 |
| 电池标准 |
| 标称电压 | 12V |
| 标称容量(20小时率) | 38Ah |

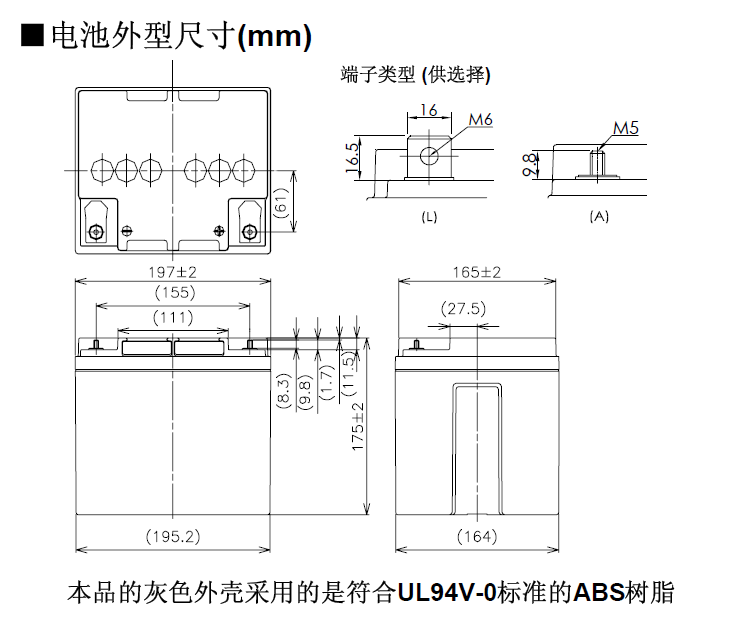

| 外观尺寸 | 长 | 197mm |
| 宽 | 165 mm |
| 高 | 175 mm |
| 总高 | 175 mm/180mm |
| 质量 | 约12.5 kg |
| 端子 | M6 L型& M5 A型 |
| 电池特性 |
| 容量(25°C) | 20小时率 | 38Ah |
| 10小时率 | 36Ah |
| 3小时率 | 29Ah |
| 1小时率 | 22Ah |
| 内阻(25°C) | 完全充电 | 10 mΩ |
| 不同温度下的放电容量(20小时率) | 40°C | 102% |
| 25 °C | 100% |
| 0°C | 85% |
| -15 °C | 65% |
| 自放电后剩余容量(25°C) | 3个月后 | 91% |
| 6个月后 | 82% |
| 12个月后 | 64% |
| 充电方法(25°C) |
| 浮充用途 | 定电压13.6-13.8V 最大电流5.7A |
|
| 终止电压 |
| 放电电流 | 1.9A-7.6A | 7.6A-19A | 19A-38A | 38A-76A | 76A-114A |
| 终止电压(V) | 10.5 | 10.2 | 9.9 | 9.3 | 8.7 |
| 定功率放电表(25°C)(瓦特/电池) |
| 终止电压V | 5min | 10min | 15min | 20min | 30min | 45min | 1h | 1.5h | 2h | 3h | 4h | 5h | 6h | 10h | 20h |
| 9.6V | 1349 | 1030 | 800 | 686 | 505 | 351 | 276 | 214 | 169 | 123 | 99.2 | 77.9 | 68.3 | 42 | 22.8 |
| 9.9V | 1271 | 1008 | 788 | 682 | 500 | 350 | 269 | 209 | 168 | 120 | 98 | 76.7 | 68 | 42 | 22.8 |
| 10.2V | 1204 | 980 | 768 | 672 | 489 | 349 | 267 | 185 | 167 | 119 | 96.8 | 75.5 | 67.7 | 42 | 22.8 |
| 10.5V | 1126 | 952 | 748 | 661 | 480 | 346 | 265 | 183 | 166 | 117 | 95.6 | 74.9 | 67.4 | 42 | 22.8 |
| 10.8V | 1098 | 874 | 716 | 640 | 468 | 308 | 247 | 175 | 155 | 114 | 94.4 | 74.3 | 67.1 | 42 | 22.8 |
| 定电流放电表(25°C)(安培/电池) |
| 终止电压V | 5min | 10min | 15min | 20min | 30min | 45min | 1h | 1.5h | 2h | 3h | 4h | 5h | 6h | 10h | 20h |
| 9.6V | 121 | 92 | 69.6 | 59.1 | 43.2 | 29.9 | 23.4 | 18.1 | 14.3 | 10.3 | 8.3 | 6.5 | 5.7 | 3.6 | 1.9 |
| 9.9V | 114 | 90 | 68.5 | 58.8 | 42.7 | 29.8 | 22.8 | 17.7 | 14.2 | 10.1 | 8.2 | 6.4 | 5.68 | 3.6 | 1.9 |
| 10.2V | 108 | 87.5 | 66.8 | 57.9 | 41.8 | 29.7 | 22.7 | 15.7 | 14.1 | 10 | 8.1 | 6.3 | 5.66 | 3.6 | 1.9 |
| 10.5V | 101 | 85 | 65 | 57 | 41 | 29.5 | 22.5 | 15.5 | 14 | 9.8 | 8 | 6.25 | 5.64 | 3.6 | 1.9 |
| 10.8V | 98.5 | 78 | 62.3 | 55.2 | 40 | 26.2 | 21 | 14.8 | 13.1 | 9.6 | 7.9 | 6.2 | 5.6 | 3.6 | 1.9 |
| 以上数据均为平均值 |
