松下 6-GFM P系列 LC-P1228
2022-03-10
6-GFM P系列 LC-P1228
| 技术数据 |
| 电池标准 |
| 标称电压 | 12V |
| 标称容量(20小时率) | 28Ah |

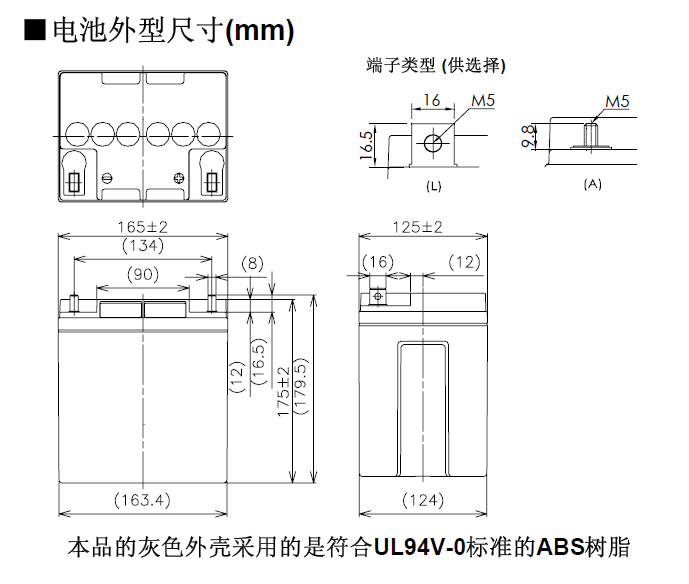

| 外观尺寸 | 长 | 165mm |
| 宽 | 125 mm |
| 高 | 175 mm |
| 总高 | 175 mm/179.5mm |
| 质量 | 约9.4 kg |
| 端子 | M5L型&A型 |
| 电池特性 |
| 容量(25°C) | 20小时率 | 28Ah |
| 10小时率 | 26Ah |
| 3小时率 | 22Ah |
| 1小时率 | 21Ah |
| 内阻(25°C) | 完全充电 | 11 mΩ |
| 不同温度下的放电容量(20小时率) | 40°C | 102% |
| 25 °C | 100% |
| 0°C | 85% |
| -15 °C | 65% |

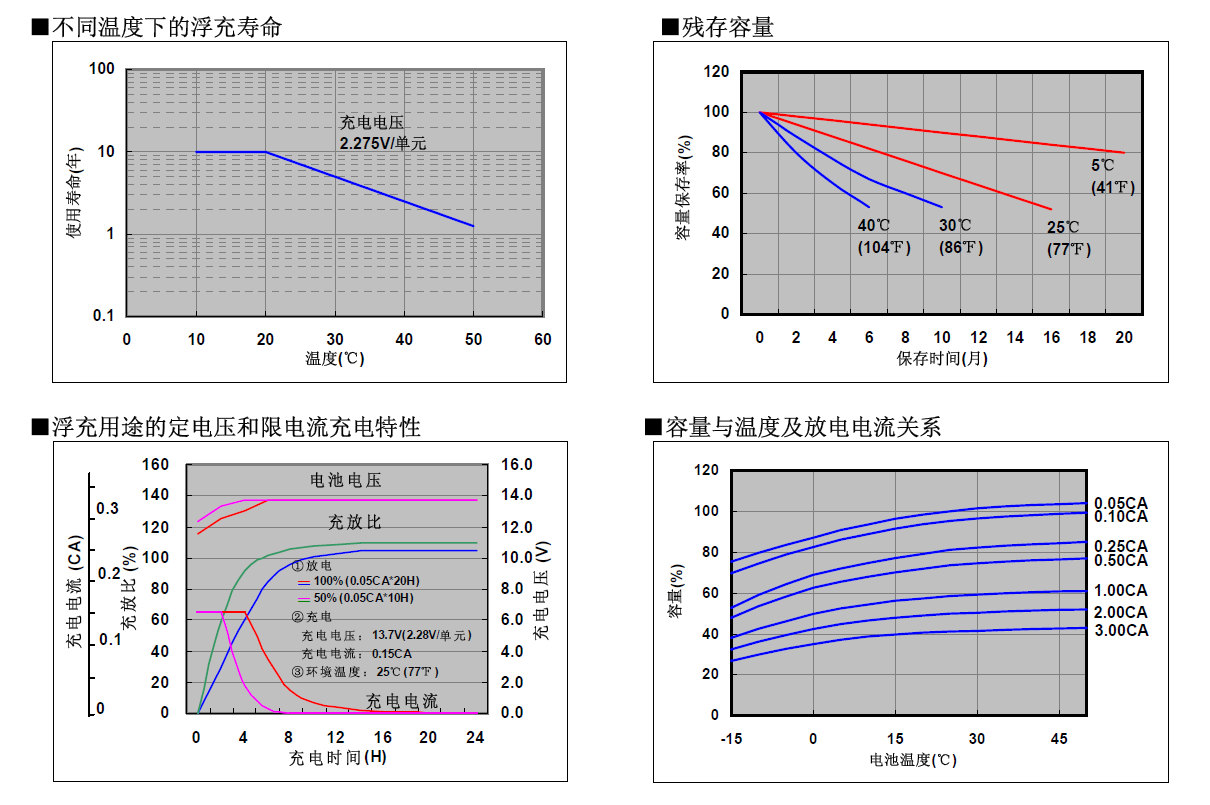

| 自放电后剩余容量(25°C) | 3个月后 | 91% |
| 6个月后 | 82% |
| 12个月后 | 64% |
| 充电方法(25°C) |
| 浮充用途 | 定电压13.6-13.8V 最大电流4.2A |
|
| 终止电压 |
| 放电电流 | 1.4A-5.6A | 5.6A-14A | 14A-28A | 28A-56A | 56A-84A |
| 终止电压(V) | 10.5 | 10.2 | 9.9 | 9.3 | 8.7 |
| 定功率放电表(25°C)(瓦特/电池) |
| 终止电压V | 5min | 10min | 15min | 20min | 30min | 45min | 1h | 1.5h | 2h | 3h | 4h | 5h | 6h | 10h | 20h |
| 9.6V | 1160 | 865 | 664 | 585 | 410 | 304 | 260 | 159 | 129 | 91.6 | 74.1 | 61.1 | 50.8 | 31.8 | 16.8 |
| 9.9V | 1093 | 849 | 654 | 579 | 404 | 294 | 254 | 156 | 128 | 90.4 | 72.9 | 60.8 | 50.4 | 31.8 | 16.8 |
| 10.2V | 1026 | 818 | 643 | 567 | 397 | 288 | 251 | 155 | 127 | 89.3 | 71.7 | 60.5 | 49.9 | 31.8 | 16.8 |
| 10.5V | 976 | 784 | 621 | 545 | 386 | 282 | 247 | 154 | 126 | 88.1 | 71.1 | 60.2 | 49.5 | 31.8 | 16.8 |
| 10.8V | 903 | 773 | 610 | 539 | 374 | 255 | 218 | 149 | 118 | 84.5 | 70.5 | 59.9 | 49 | 31.8 | 16.8 |
| 定电流放电表(25°C)(安培/电池) |
| 终止电压V | 5min | 10min | 15min | 20min | 30min | 45min | 1h | 1.5h | 2h | 3h | 4h | 5h | 6h | 10h | 20h |
| 9.6V | 104 | 77.2 | 57.7 | 50.4 | 35 | 25.9 | 22.1 | 13.5 | 10.9 | 7.7 | 6.2 | 5.1 | 4.3 | 2.6 | 1.4 |
| 9.9V | 98 | 75.8 | 56.9 | 49.9 | 34.5 | 25 | 21.6 | 13.2 | 10.8 | 7.6 | 6.1 | 5.06 | 4.28 | 2.6 | 1.4 |
| 10.2V | 92 | 73 | 55.9 | 48.9 | 33.9 | 24.5 | 21.3 | 13.1 | 10.7 | 7.5 | 6 | 5.03 | 4.25 | 2.6 | 1.4 |
| 10.5V | 87.5 | 70 | 54 | 47 | 33 | 24 | 21 | 13 | 10.6 | 7.4 | 5.95 | 4.99 | 4.23 | 2.6 | 1.4 |
| 10.8V | 81 | 69.0. | 53 | 46.5 | 32 | 21.7 | 18.5 | 12.6 | 10 | 7.1 | 5.9 | 4.95 | 4.2 | 2.6 | 1.4 |
| 以上数据均为平均值 |
